Specs
Brand | Dorian Tool |
Manufacturer's Part Number | 73310158640 |
Thread Type | Internal |
Hand of Holder | Right Hand |
Toolholder Style | SN |
Series | Laydown Jet Stream |

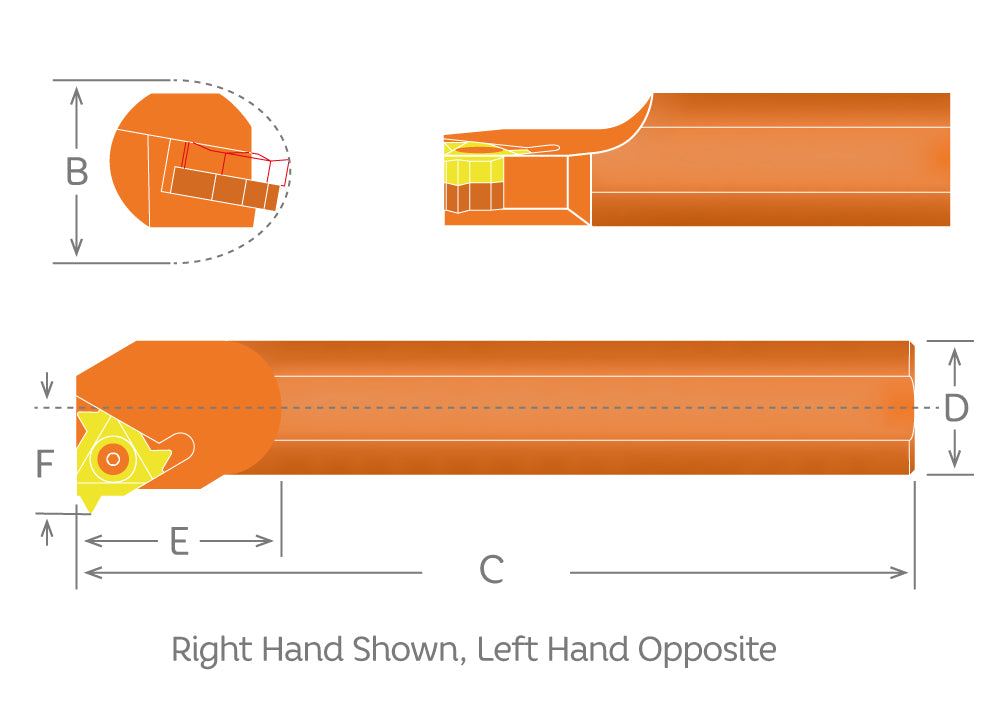

B - Minimum Bore Diameter (Decimal Inch) |
1.1500 |
C - Overall Length (Inch) | 8" |
C - Overall Length (Decimal Inch) | 8.0000 |
C - Overall Length (mm) | 203.20 |
D - Shank Width/Diameter (mm) | 25.40 |
D - Shank Width/Diameter (Decimal Inch) | 1.0000 |
D - Shank Width/Diameter (Inch) | 1" |
E - Head Length (Decimal Inch) | 2.5000 |
F - Center to Cutting Edge (Decimal Inch) |
0.6500 |
Insert Compatibility | Laydown 16-G60 |
Through Coolant | No |
Multi-Use Tool | No |
Insert Holding Method | Screw |
Gage Insert | 16-G16 |
Shim Seat | GXE-16 |
Insert Torx Screw | TS-16 |
Torx Key | T-10 |
