Specs
Brand | Dorian Tool |
Manufacturer's Part Number |
73310155662 |
Toolholder Style | TPBN |
Hand of Holder | Right Hand |

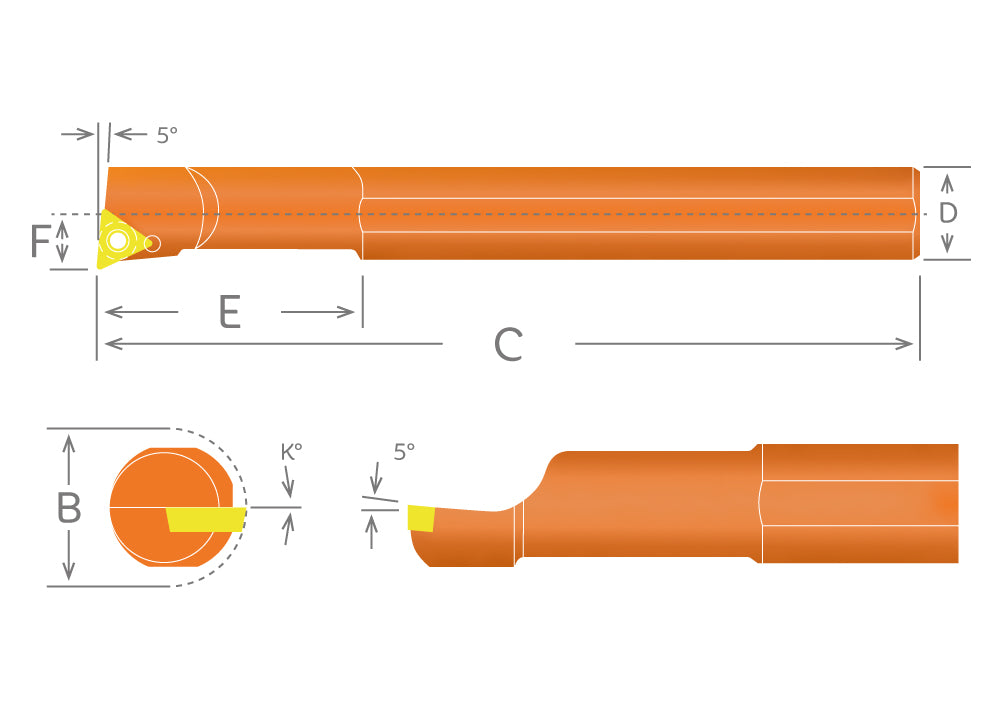

B - Minimum Bore Diameter (Decimal Inch) | 0.6820 |
C - Overall Length (Decimal Inch) | 8.0 |
D - Shank Diameter (Inch) | 5/8" |
D - Shank Diameter (Decimal Inch) | 0.6250 |
E - Head Length (Decimal Inch) | 2.2500 |
F - Center to Cutting Edge (Decimal Inch) | 0.3500 |
K | 0 |
Lead Angle | 5 |
Through Coolant | No |
Multi-Use Tool | No |
Insert Holding Method | Screw |
Rake | Positive |
Gage Insert | 21.51 |
Insert Torx Screw | TS-25.45-6M2 |
Torx Key | T-8 |
