Specs
Brand | Dorian Tool |
Manufacturer's Part Number |
73310155014 |
Toolholder Style | S-MCLN |
Hand of Holder | Right Hand |

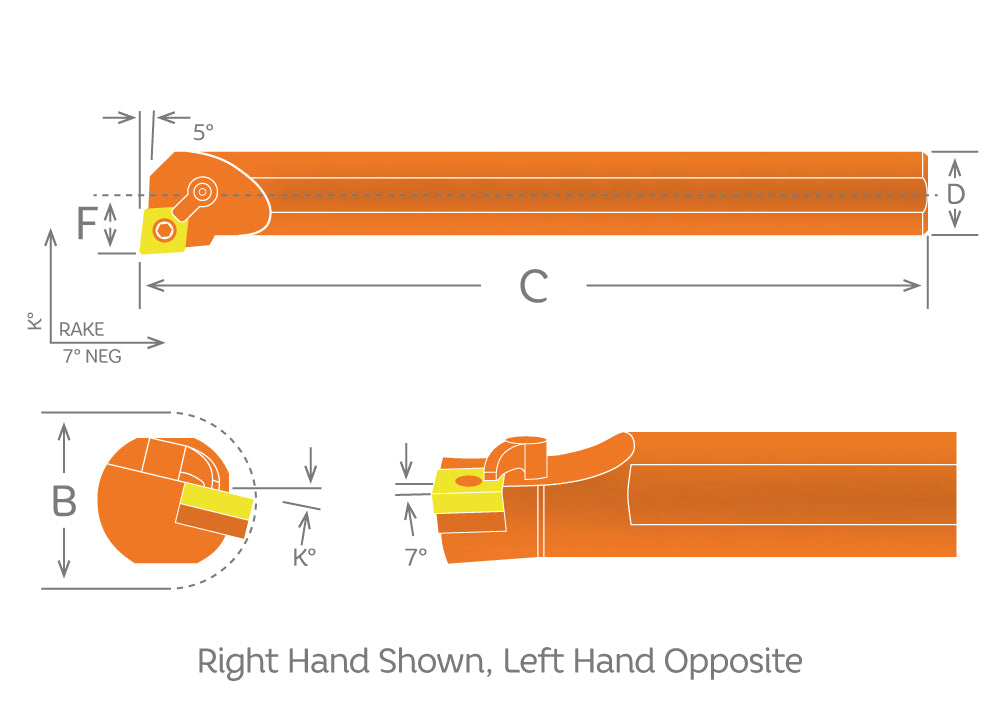

B - Minimum Bore Diameter (Decimal Inch) | 1.2800 |
C - Overall Length (Decimal Inch) | 12.0000 |
C - Overall Length (mm) | 304.8 |
D - Shank Width/Diameter (Decimal Inch) | 1.0000 |
D - Shank Width/Diameter (Inch) | 1" |
F - Center to Cutting Edge (Decimal Inch) | 0.6400 |
Insert Holding Method | Screw, Clamp |
Gage Insert | CNM_ 432 |
Lock Pin | NL-44 |
Clamp | CL-20 |
Clamp Screw | XNS-48 |
