Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
Brand | Dorian Tool |
Manufacturer's Part Number | 73310171704 |
Insert Style | TPGH |
Insert Size | 21.51 |
Material | Carbide |

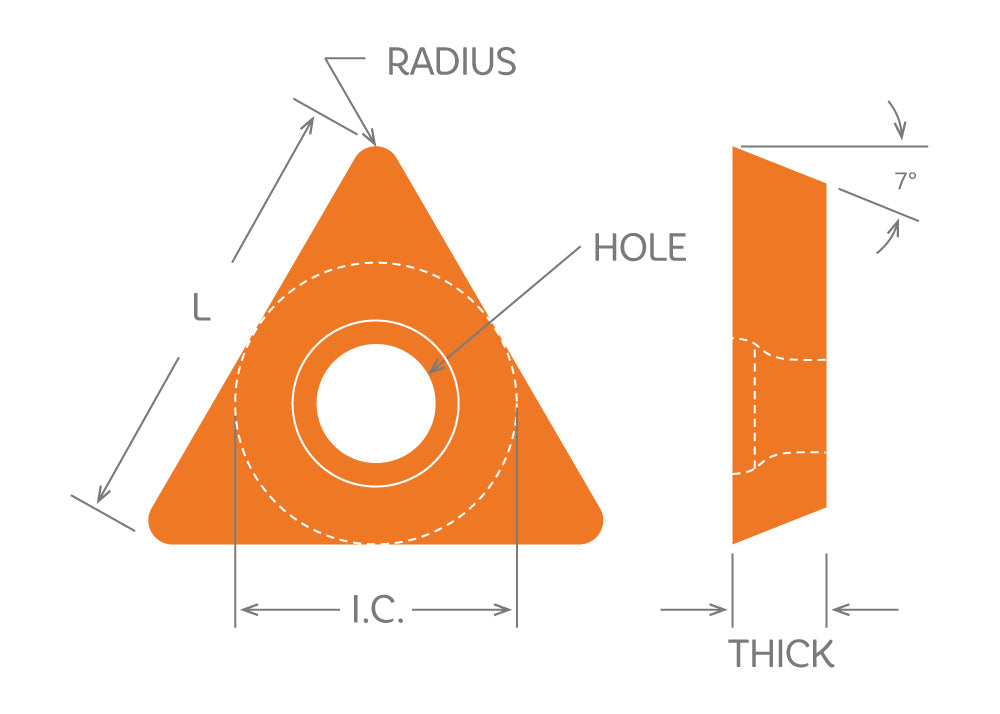

Inscribed Circle (Decimal Inch) | 0.1250 |
Inscribed Circle (Inch) | 1/8" |
Thickness (Decimal Inch) | 0.0937 |
Thickness (Inch) | 3/32" |
Corner Radius (Decimal Inch) | 0.0156 |
Corner Radius (Inch) | 1/64" |
Manufacturer's Grade | DPP30GT |
Coating | TiN |
Material Grade | C6/C7 |
Chip Breaker | UEN |
Insert Length (Decimal Inch) | |
Hole Diameter (Decimal Inch) | 0.1250 |
Hole Diameter (mm) | 3.17 |
ISO Number | TPGH-110204-UEN-DPP30GT |
Rake | Positive |
Relief Angle | 11 |
Coating Process | PVD |
Manufacturers Catalog Number | TPGH-21.51-UEN-DPP30GT |
Included Angle | 60 |
Cutting Direction | Neutral |
Insert Holding Method | Screw |
Cutting Edge Style | Honed |
MultiUseTool | No |

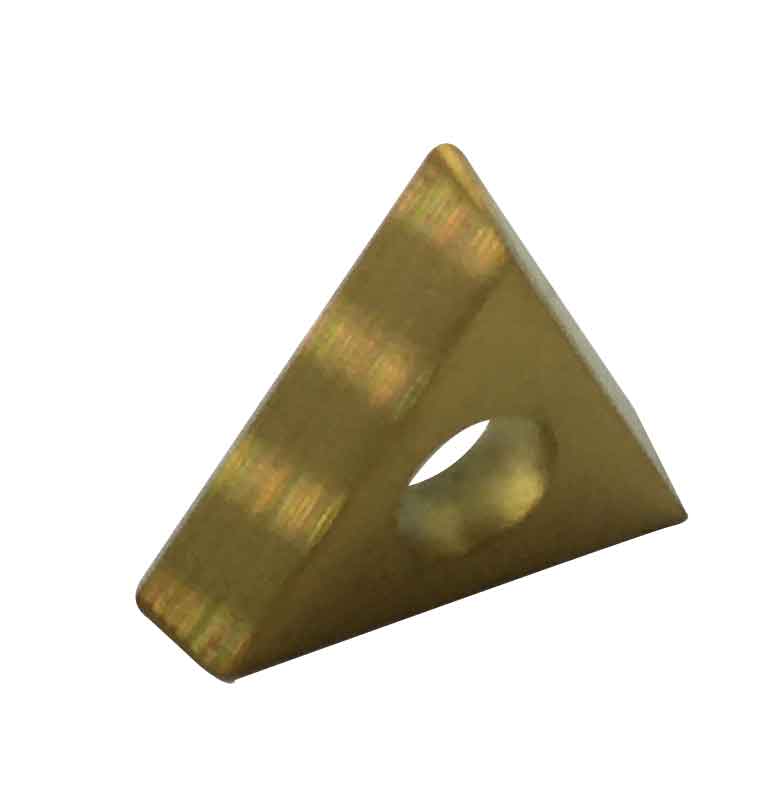

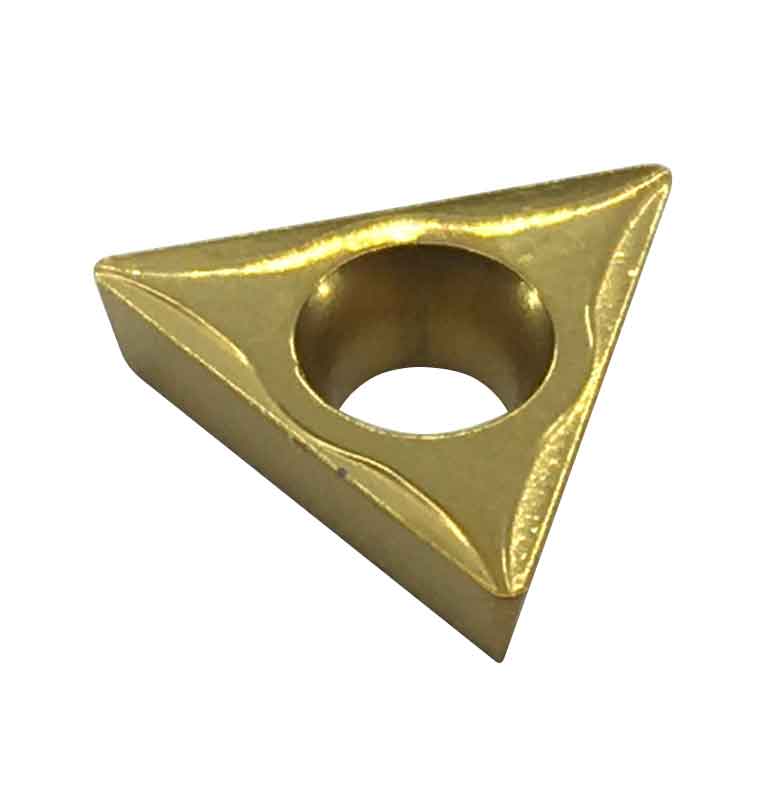

Shape | Triangle |
