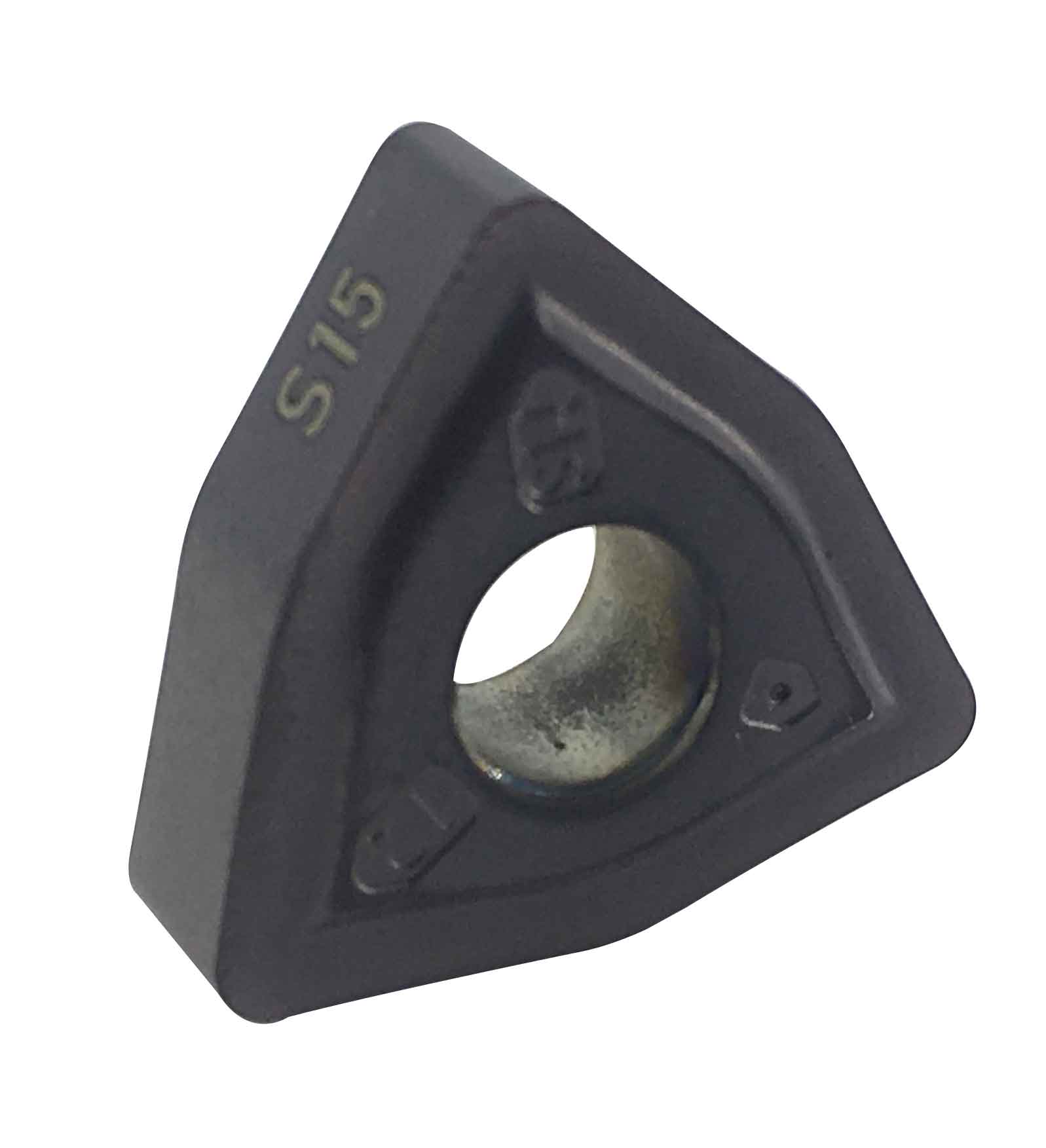

Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310167104 |
| Insert Style | WNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2" |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16" |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64" |
| Manufacturer's Grade | DSP15HT |
| Coating | TiAlN/WC/C |
| Material Grade | C4/C8 |
| Chip Breaker | SEM |
| Insert Length (Decimal Inch) | 0.3421 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (mm) | 5.16 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WNMG-433-SEM-DSP15HT |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 2.01 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| MultiUseTool | No |
| Shape | Trigon |
