| Brand | Quality Imports |
| MPN | 202-5422 |

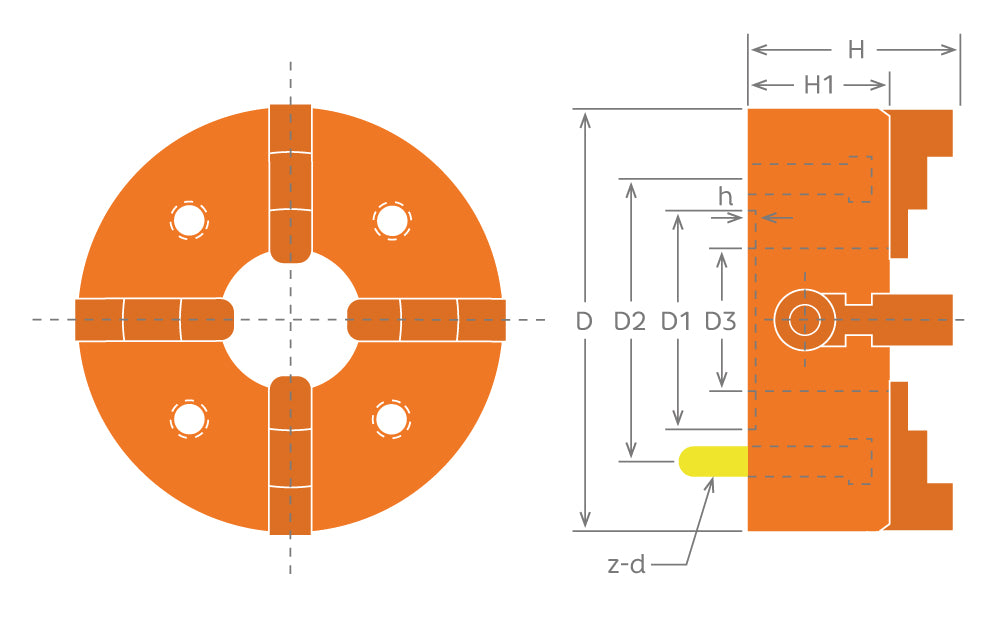

| D - Chuck Size (Decimal Inch) | 10.0000" |
| D1 - (Decimal Inch) | 3.9370" |
| D2 - Bolt Circle Diameter (Decimal Inch) | 4.7250" |
| D3- Thru Hole Size (Decimal Inch) | 2.5590" |
| H - Total Height (Decimal Inch) | 4.5470" |
| H1 - Chuck Thickness (Decimal Inch) | 3.1500" |
| h - (Decimal Inch) | 0.2360" |
| Z-d - Bolt Quantity and Size | 4-M12 |
| RPM Max. Speed | 1800 |
