Brand | Quality Imports |
MPN | 202-5436 |

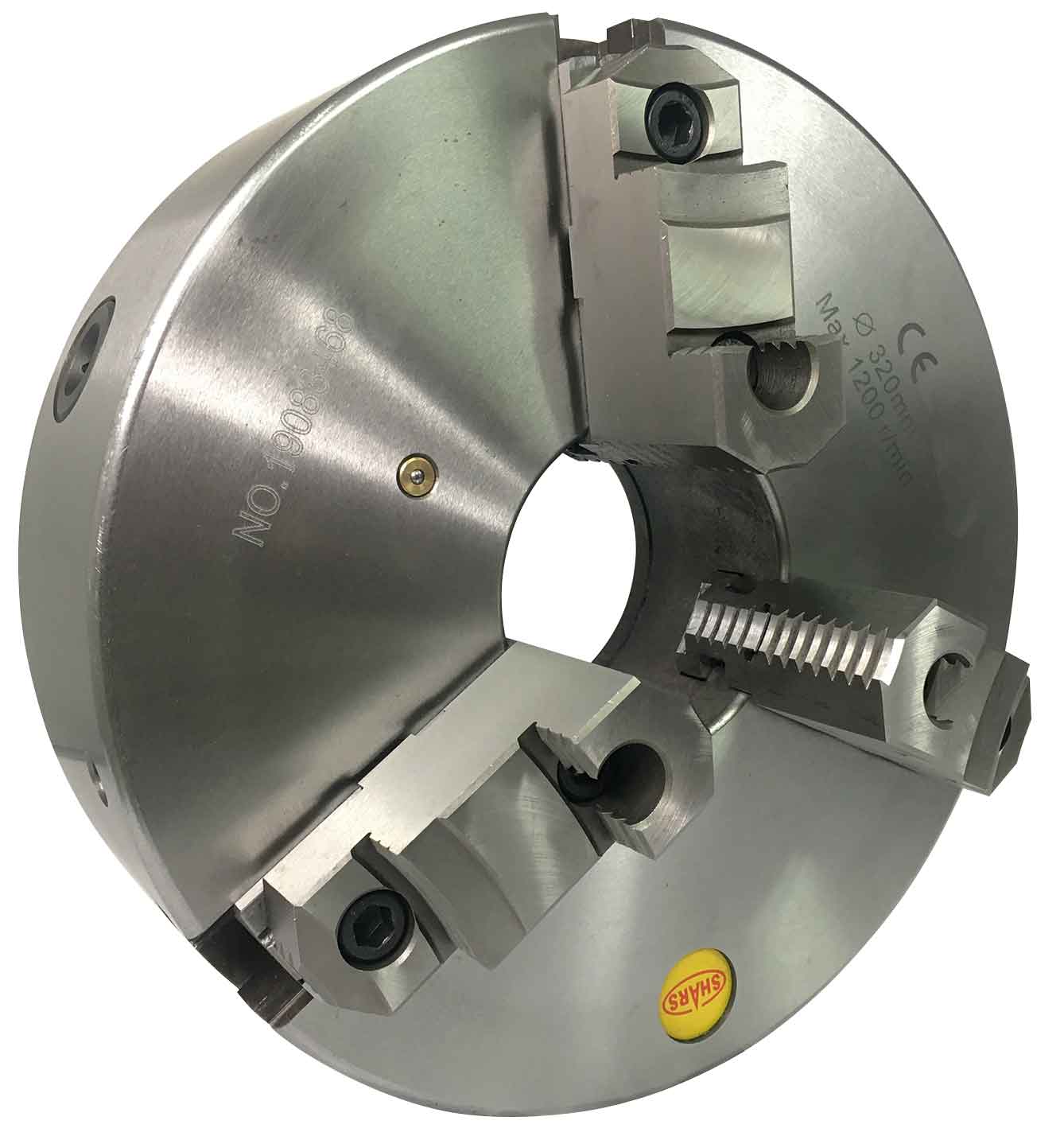

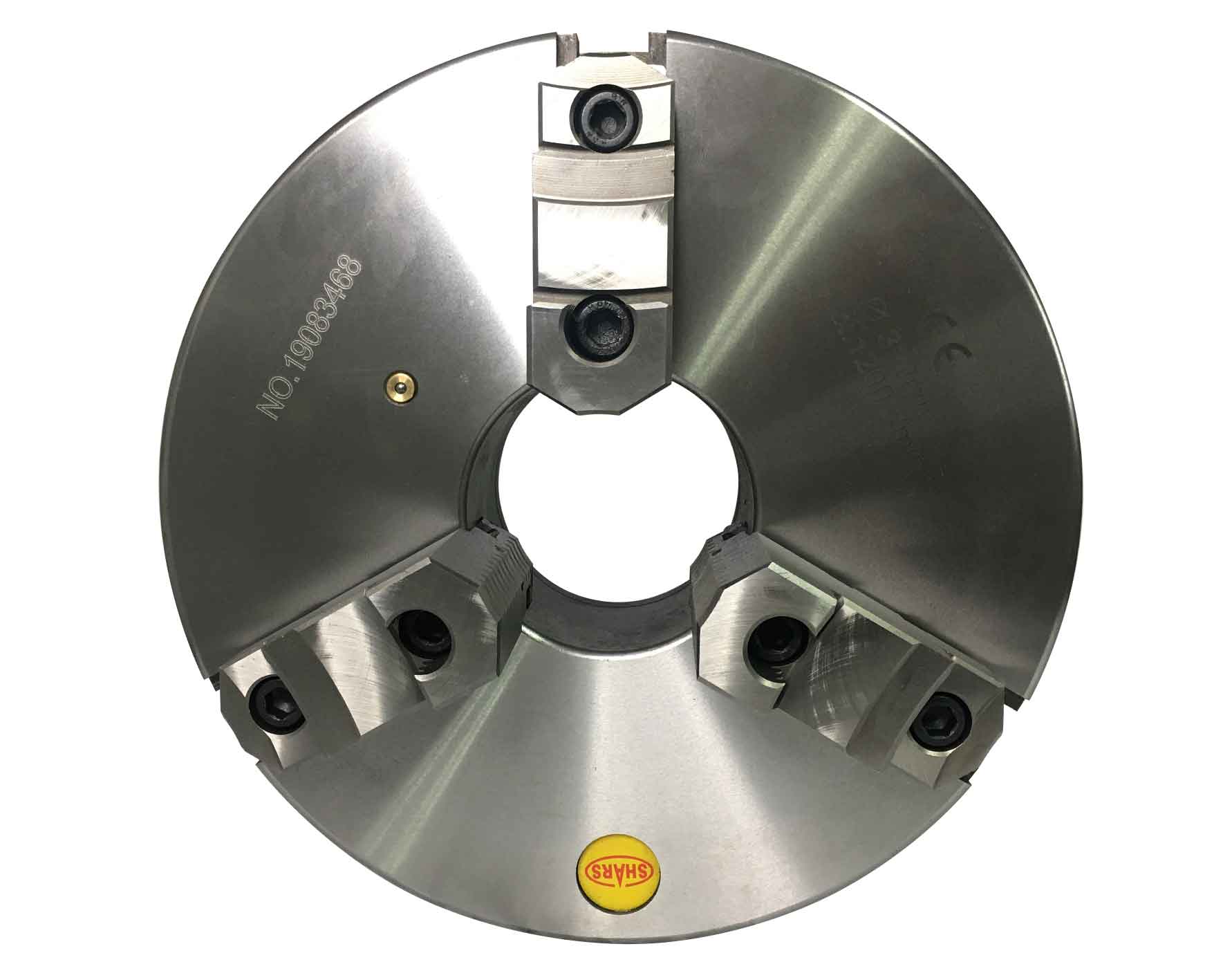

Lathe Chuck Category | Self Centering Scroll Chucks |

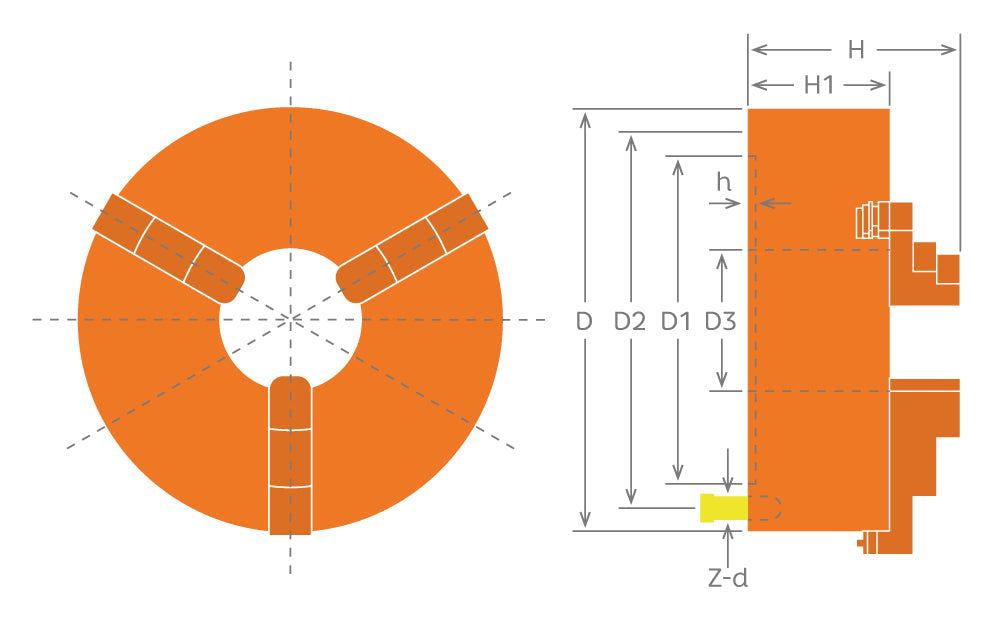

D - Chuck Size (Decimal Inch) | 12.0000" |
D1 - (Decimal Inch) | 10.3600" |
D2 - Bolt Circle Diameter (Decimal Inch) | 11.4170" |
D3- Thru Hole Size (Decimal Inch) | 3.9370" |
H1 - Chuck Thickness (Decimal Inch) | 3.5430" |
h - (Decimal Inch) | 0.2360" |
Z-d - Bolt Quantity and Size | 3-M16 |
RPM Max. Speed | 1200 |
TIR | 0.0047 |
Number of Jaws | 3 |
