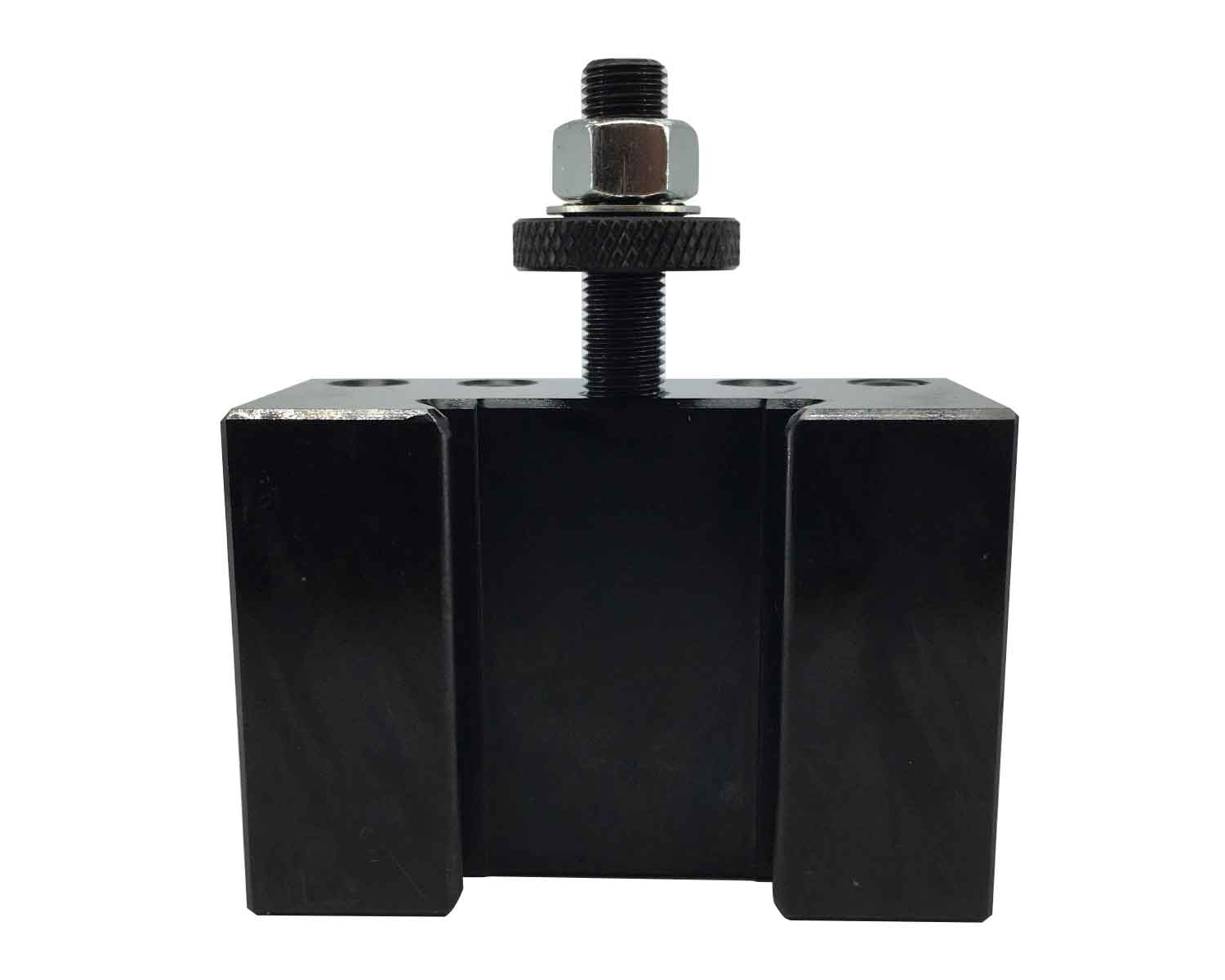

Features and Benefits
-The “V” groove makes this holder more versatile so that it can hold either square shank tool holders or boring bars.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310101254 |
| Series | BXA |
| Tool Post Holder Number | 2 |
| Tool Post Holder Type | Boring, Turning & Facing Holder |
| Lathe Swing (mm) | 330 to 380 |
| Lathe Swing (Inch) | 13 to 15 |
| Through Coolant | No |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 2-1/4" |
| Overall Height (Decimal Inch) | 2.2500 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4" |
| Overall Length (Decimal Inch) | 3.2500 |
| Maximum Cutting Tool Size (mm) | 25.40 |
| Maximum Cutting Tool Size (Inch) | 1" |
| Centerline Height (mm) | 33.34 |
| Centerline Height (Inch) | 1-5/16" |
| Centerline Height (Decimal Inch) | 1.3125 |
