Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310101400 |
| Series | CXA |
| Tool Post Holder Number | 1 |
| Tool Post Holder Type | Turning & Facing Holder |
| Lathe Swing (mm) | 350 to 430 |
| Lathe Swing (Inch) | 14 to 17 |
| Through Coolant | No |

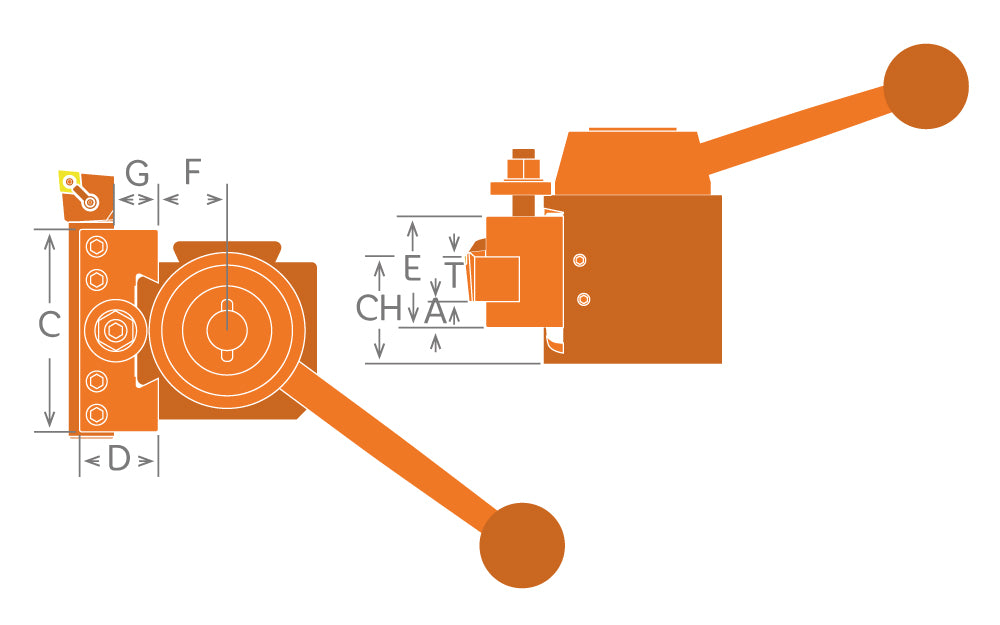

| A - (Decimal Inch) | 0.500 |
| T - Max Tool Shank (Inch) | 1" |
| C - Overall Length (Decimal Inch) | 3.750 |
| D - Overall Width (Decimal Inch) | 1.750 |
| E - Overall Height (Decimal Inch) | 2.500 |
| F - (Decimal Inch) | 1.199 |
| G - (Decimal Inch) | 1.040 |
| Maximum Cutting Tool Size (Inch) | 1" |
| Centerline Height (Decimal Inch) | 1.625 |
