Features and Benefits
-The Triple Action Wedge-Locking System is a powerful combination of a downward, outward and inward force simultaneously locking the holder.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310101006 |

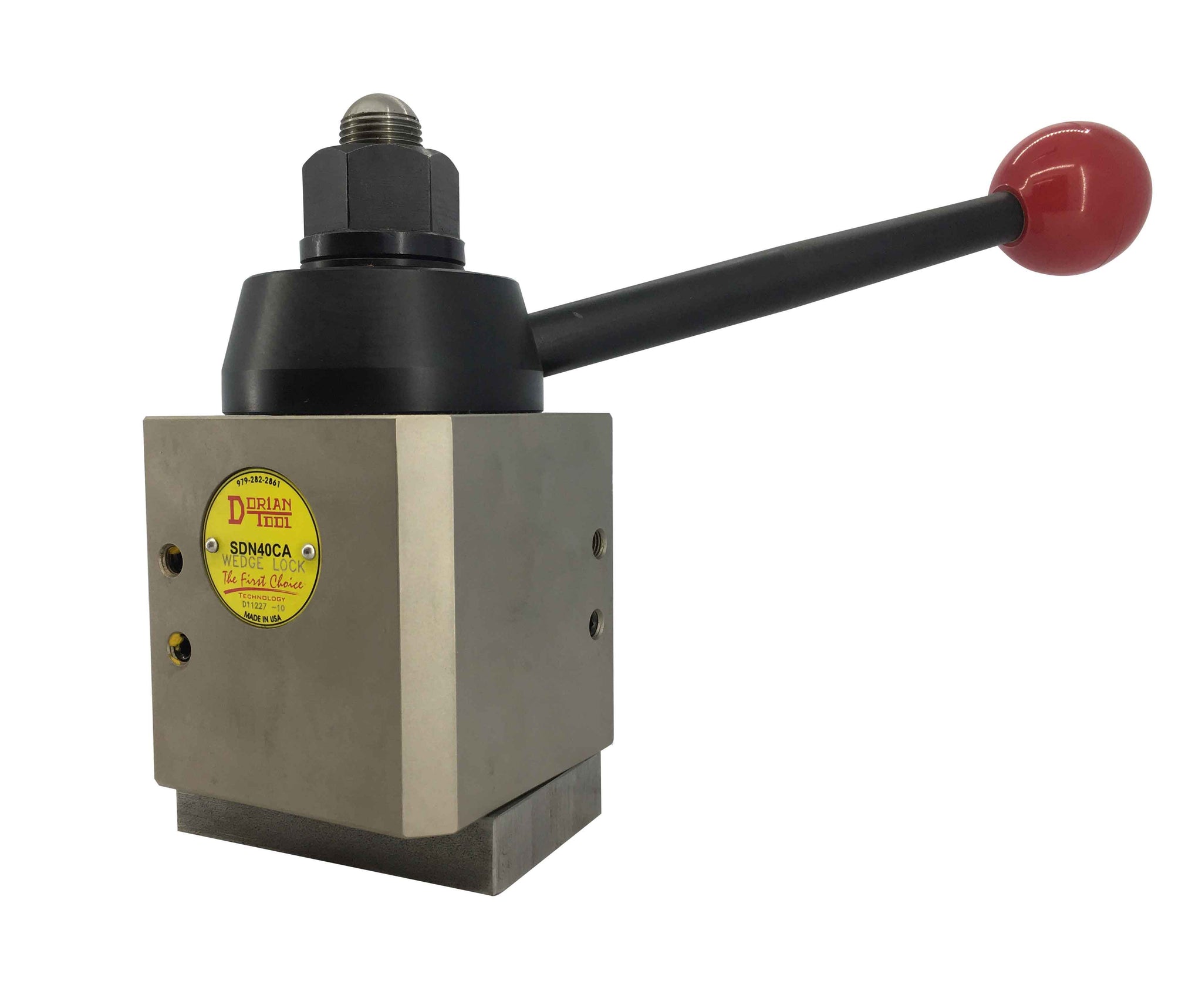

| Type | Quick Change Tool Post - Wedge Type |
| Series | CA |
| Lathe Swing (mm) | 400 to 500 |
| Lathe Swing (Inch) | 16 to 20 |
| Through Coolant | No |

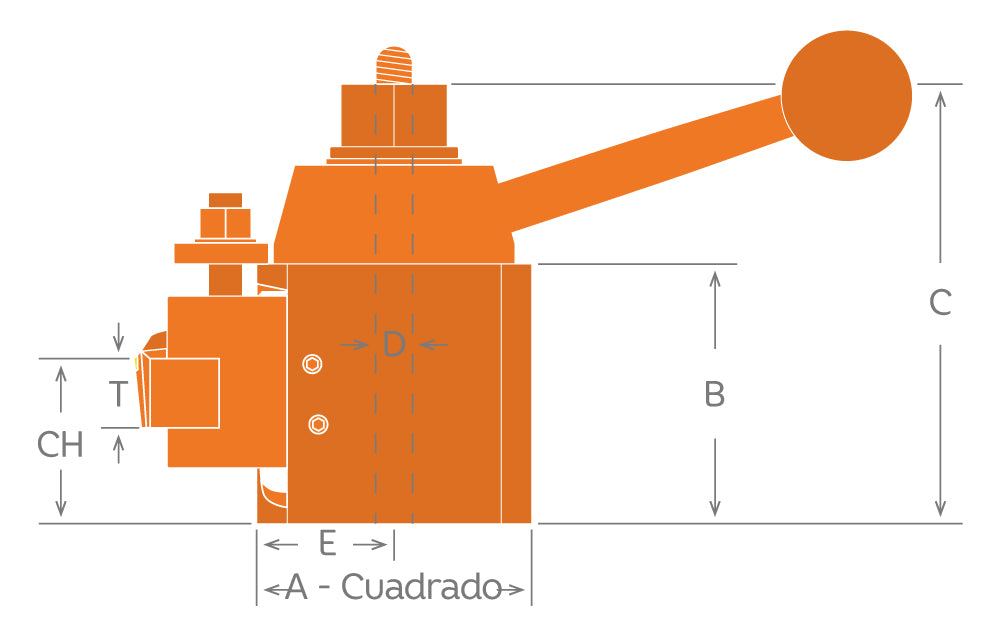

| A - Base Width (Decimal Inch) | 4.000 |
| B - Body Height (Decimal Inch) | 3.750 |
| C - Height to Nut (Decimal Inch) | 6.335 |
| D - Bolt Hole Diameter (Decimal Inch) | 0.875 |
| E - Center to Edge (Decimal Inch) | 1.530 |
| T - Tool Capacity | 1" - 1-1/4" |
| Holding Post Thread | 7/8-14 |
| Overall Height (Inch) | 7-1/8" |
| Centerline to Handle Edge (Inch) | 9-5/16" |
| Optimum Center Height (Decimal Inch) | 1.937 |
| Minimum Center Height (Decimal Inch) | 1.562 |
| Maximum Center Height (Decimal Inch) | 2.562 |
| Repeatability (Decimal Inch) | 0.000100 |
