Features and Benefits
-The Triple Action Wedge-Locking System is a powerful combination of a downward, outward and inward force simultaneously locking the holder.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310101002 |

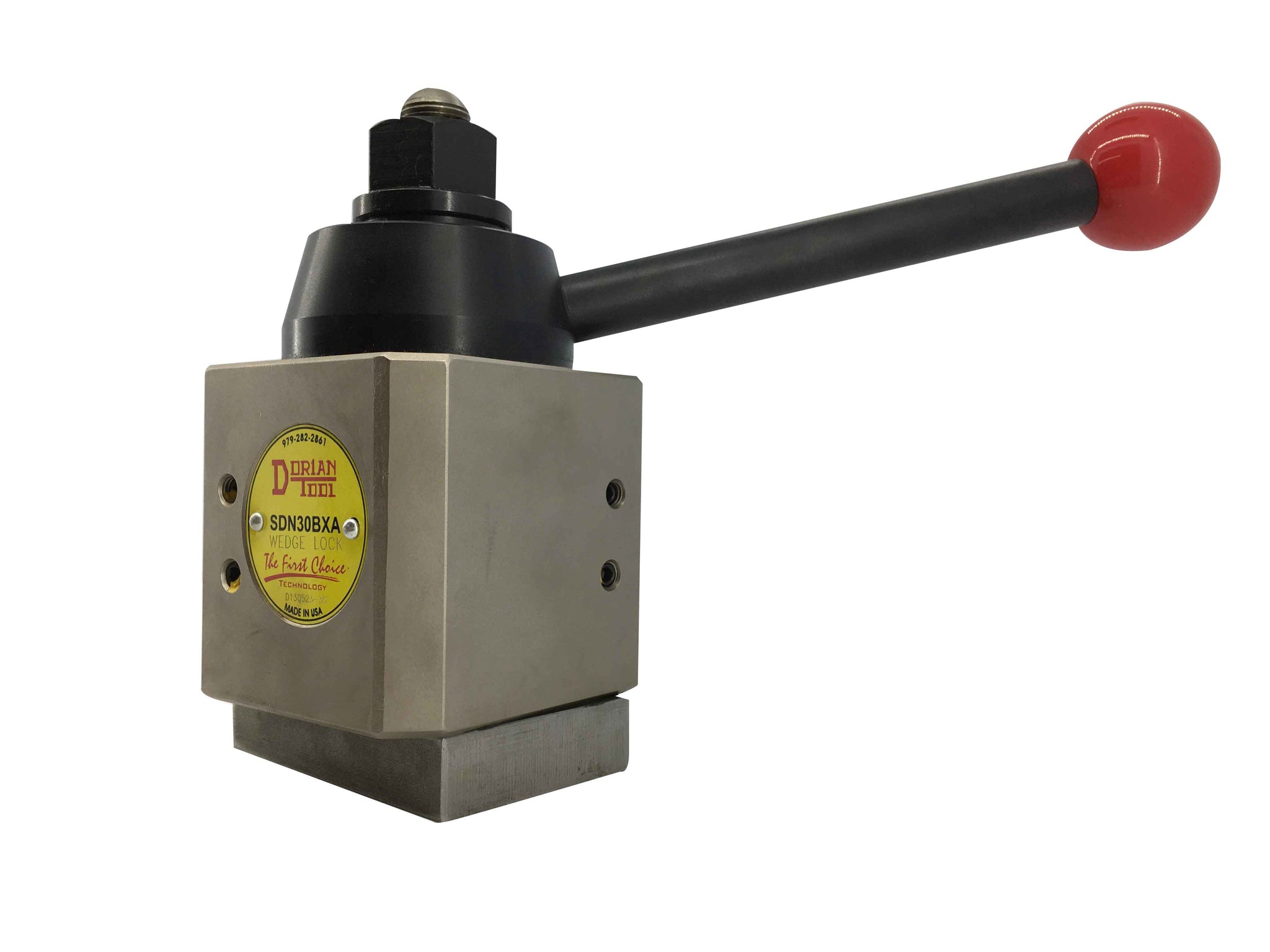

| Type | Quick Change Tool Post - Wedge Type |
| Series | BXA |
| Lathe Swing (mm) | 330 to 380 |
| Lathe Swing (Inch) | 13 to 15 |
| Through Coolant | No |

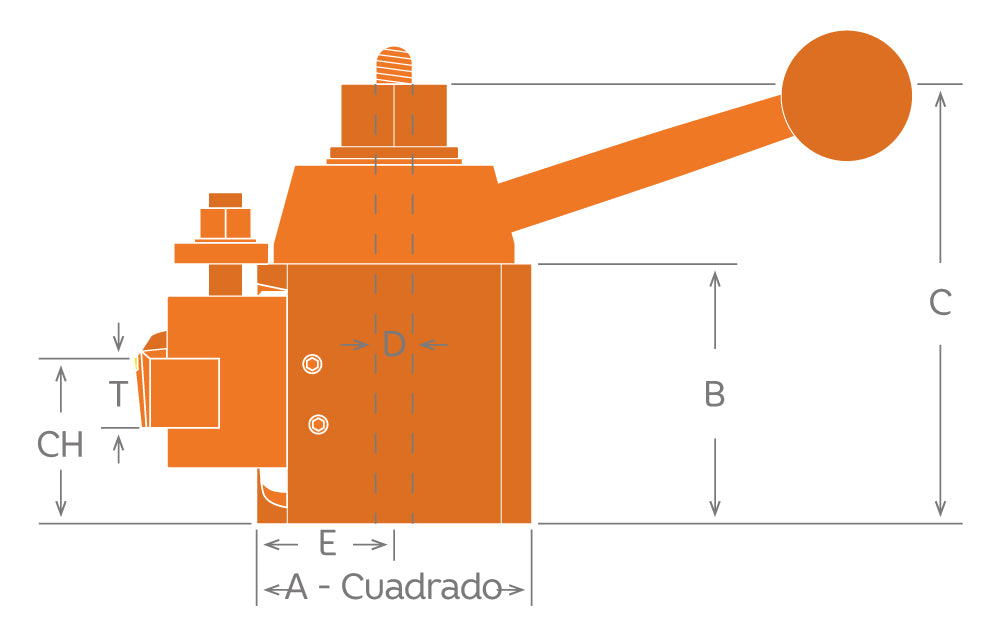

| A - Base Width (Decimal Inch) | 3.000 |
| B - Body Height (Decimal Inch) | 2.750 |
| C - Height to Nut (Decimal Inch) | 4.710 |
| D - Bolt Hole Diameter (Decimal Inch) | 0.625 |
| E - Center to Edge (Decimal Inch) | 1.115 |
| T - Tool Capacity | 5/8" - 1" |
| Holding Post Thread | 5/8-18 |
| Overall Height (Inch) | 5-13/32" |
| Centerline to Handle Edge (Inch) | 7-1/2" |
| Optimum Center Height (Decimal Inch) | 1.312 |
| Minimum Center Height (Decimal Inch) | 1.062 |
| Maximum Center Height (Decimal Inch) | 1.937 |
| Repeatability (Decimal Inch) | 0.000100 |
