| Brand | Quality Imports |
| MPN | 202-5474 |
| Lathe Chuck Category |
Self Centering Scroll Chucks |

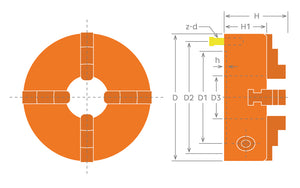

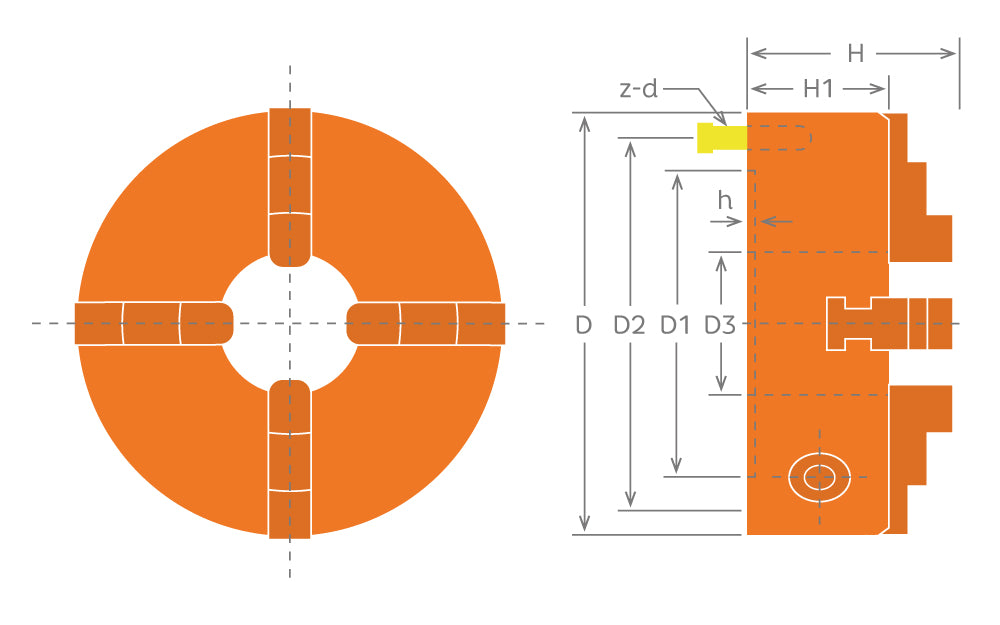

| D - Chuck Size (Decimal Inch) | 8.0000" |
| D1 - (Decimal Inch) | 6.4960" |
| D2 - Bolt Circle Diameter (Decimal Inch) | 7.0870" |
| D3- Thru Hole Size (Decimal Inch) | 2.5590" |
| H - Total Height (Decimal Inch) | 4.2910" |
| H1 - Chuck Thickness (Decimal Inch) | 2.9520" |
| h - (Decimal Inch) | 0.2000" |
| Z-d - Bolt Quantity and Size | 3-M10 |
| RPM Max. Speed | 2000 |
| TIR | 0.0039 |
