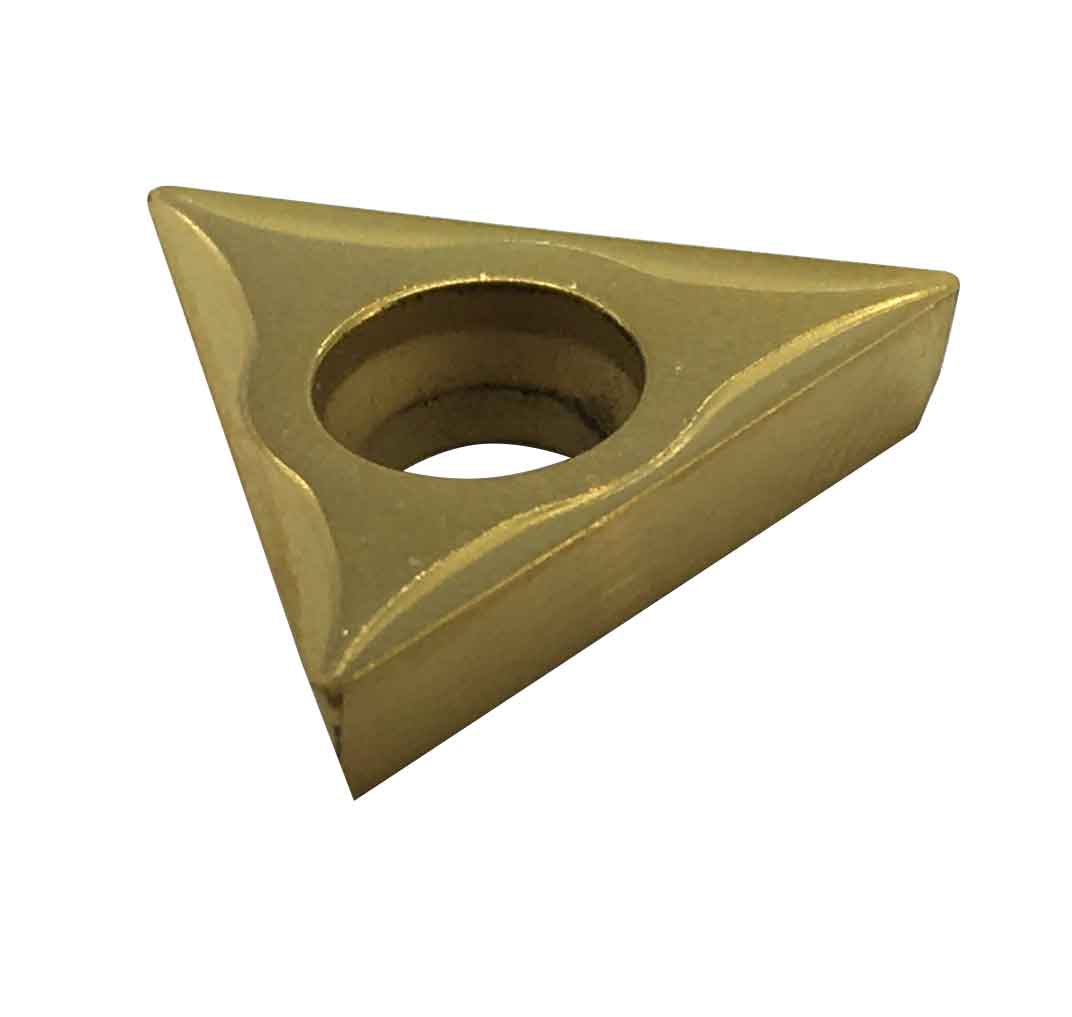

Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310171716 |
| Insert Style | TPGH |
| Insert Size | 321 |
| Material | Carbide |

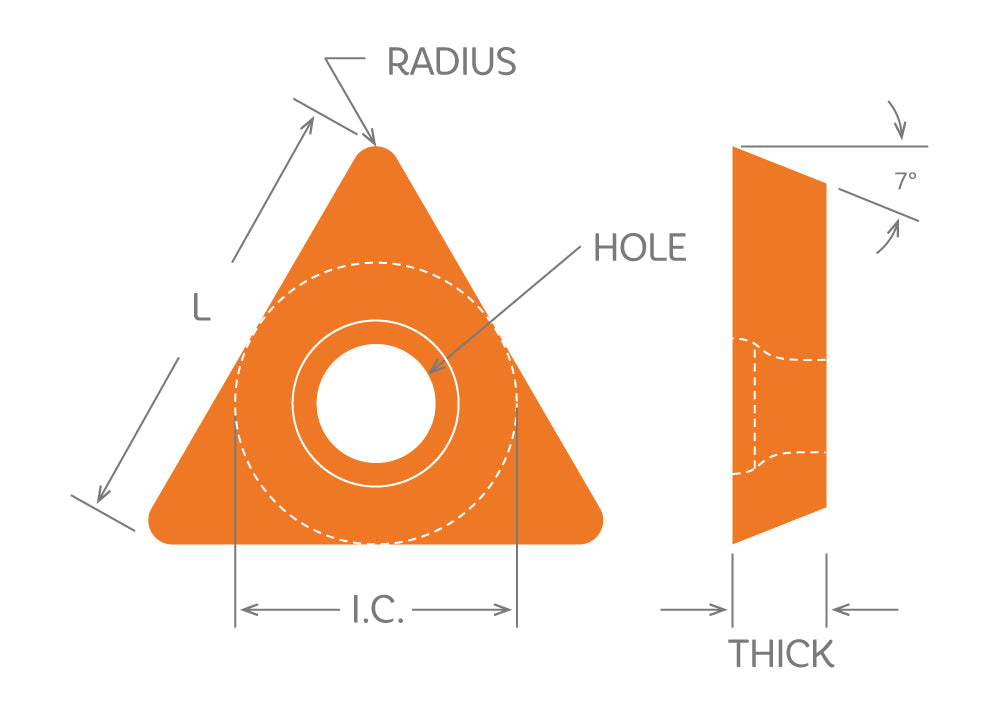

| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8" |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8" |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (Inch) | 1/64" |
| Manufacturer's Grade | DNP25GT |
| Coating | TiN |
| Material Grade | C1/C2 |
| Chip Breaker | UEN |
| Insert Length (Decimal Inch) | 0.6496 |
| Hole Diameter (Decimal Inch) | 0.1780 |
| Hole Diameter (mm) | 4.52 |
| ISO Number | TPGH-160304-UEN-DNP25GT |
| Rake Angle | 7 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TPGH-321-UEN-DNP25GT |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| MultiUseTool | No |
| Shape | Triangle |
