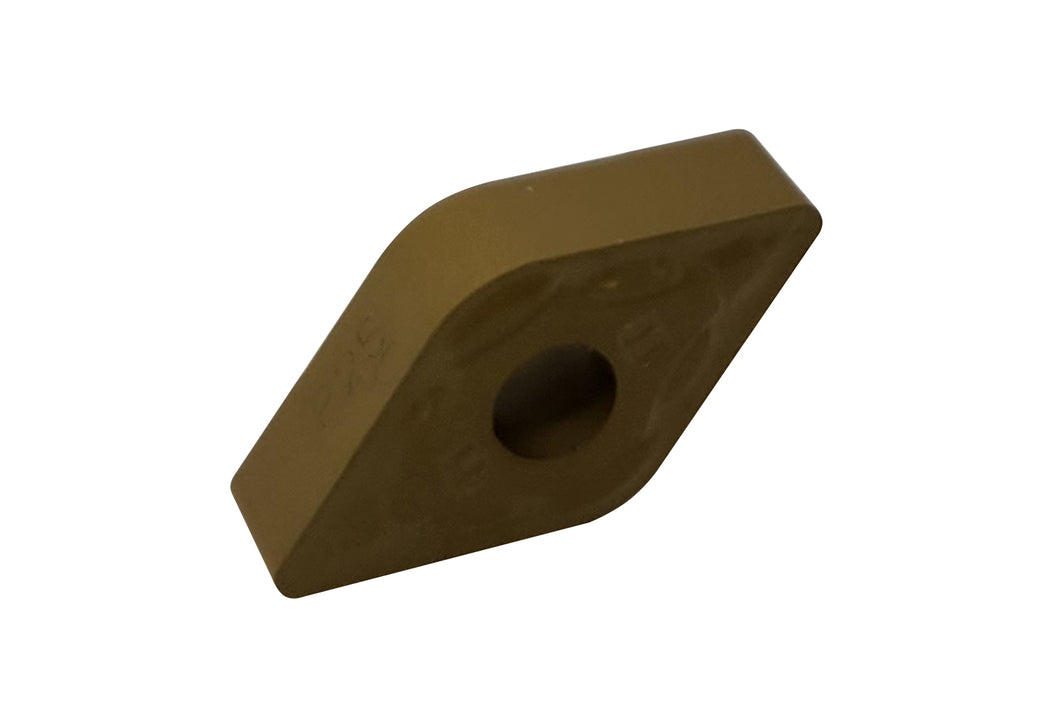

Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310169296 |
| Insert Style | DNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8" |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16" |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32" |
| Manufacturer's Grade | DPC25UT |
| Coating | Al2O3/TiCN/Al2O3/TiCN |
| Material Grade | C5/C6 |
| Chip Breaker | PEM |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (mm) | 3.8 |
| ISO Number | DNMG-110408-PEM-DPC25UT |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DNMG-332-PEM-DPC25UT |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 5.99 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| MultiUseTool | No |
| Shape | Diamond |
