Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310182908 |
| Insert Size | 3 |
| Thread Type | Internal / External |
| Insert Hand | Right Hand |
| Material Grade | C5/C6 |
| Manufacturer's Grade | DVP656 |
| Internal Pitch / TPI | 4.00 mm / 5-12 TPI |
| External Pitch / TPI | 1.25 mm / 6-20 TPI |
| Coating | TiN |
| Material | Carbide |
| Coating Process | PVD |
| Gage Diameter | 0.3750 |
| A - Insert Length | 0.344 |
| B - Maximum Depth of Cut (Decimal Inch) | 0.3999 |
| E - Tip to Top of Insert (Decimal Inch) | 0.098 |
| R - Corner Radius (Decimal Inch) | 0.005-0.008 |
| T - Thickness (Decimal Inch) | 0.195 |
| Included Angle of Threading Tip | 60 |

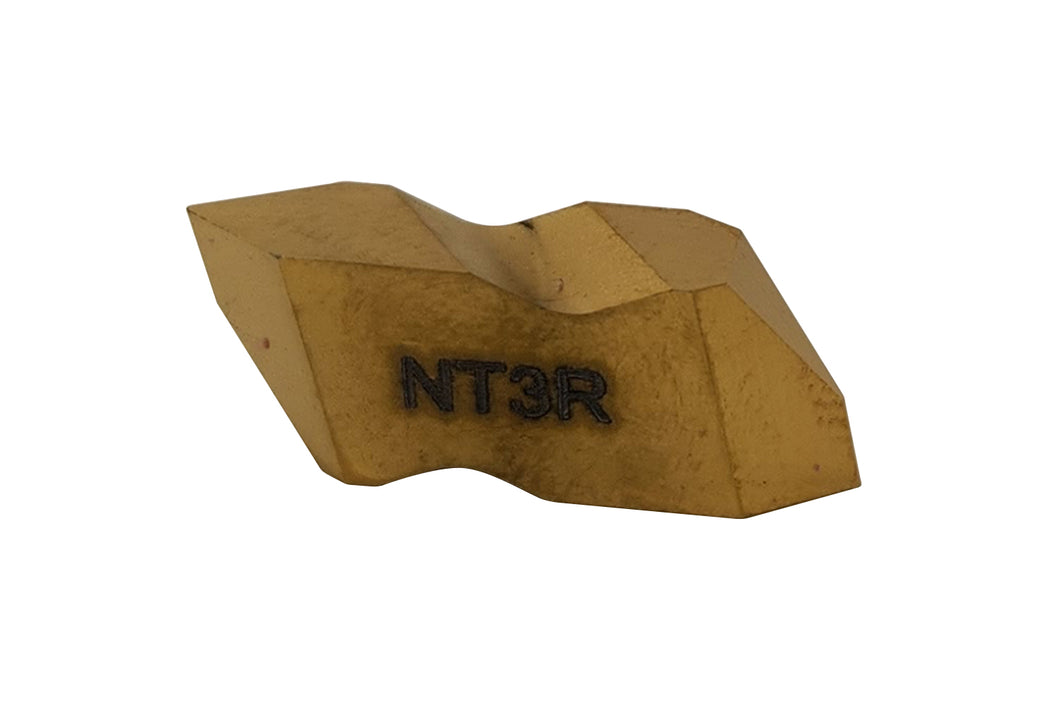

| Manufacturers Catalog Number | NT-3R |
