MPN: ES-P/110
Technical features and performances
- Motor-driven pump designed to be fully immersed in liquid
- Screed pole type electric motor
- Winding insulation CLF and resin coated
- Degree of protection: IP. x 8
- Thermal overload cut-out incorporated
- AISI 420 stainless steel tempered shaft
- Motor running on self-lubricating CW (long-life) bearings in semi-rigid supports: Almost total absorption of vibrations and noise.
- Double lip seal treated with special anti-friction lubricant
- Water outlet adjustable by 360°
- Anti-block filter on suction
- Power cable length: 2 metres
- Part of the pump made of thermoplastic material, resistant to high temperatures
Various notes and warnings
- It is strictly forbidden to use flammable liquids
- Before you connect the electric pump, always check the voltage and frequency on the ratings plate
- Connect the earth cable to the electrical safety systems before connecting to the mains
- The pump won’t be damaged by partially or totally closing the inlet pipe
- We can supply motors with input voltages and frequencies that meet the specific requirements of the customer.

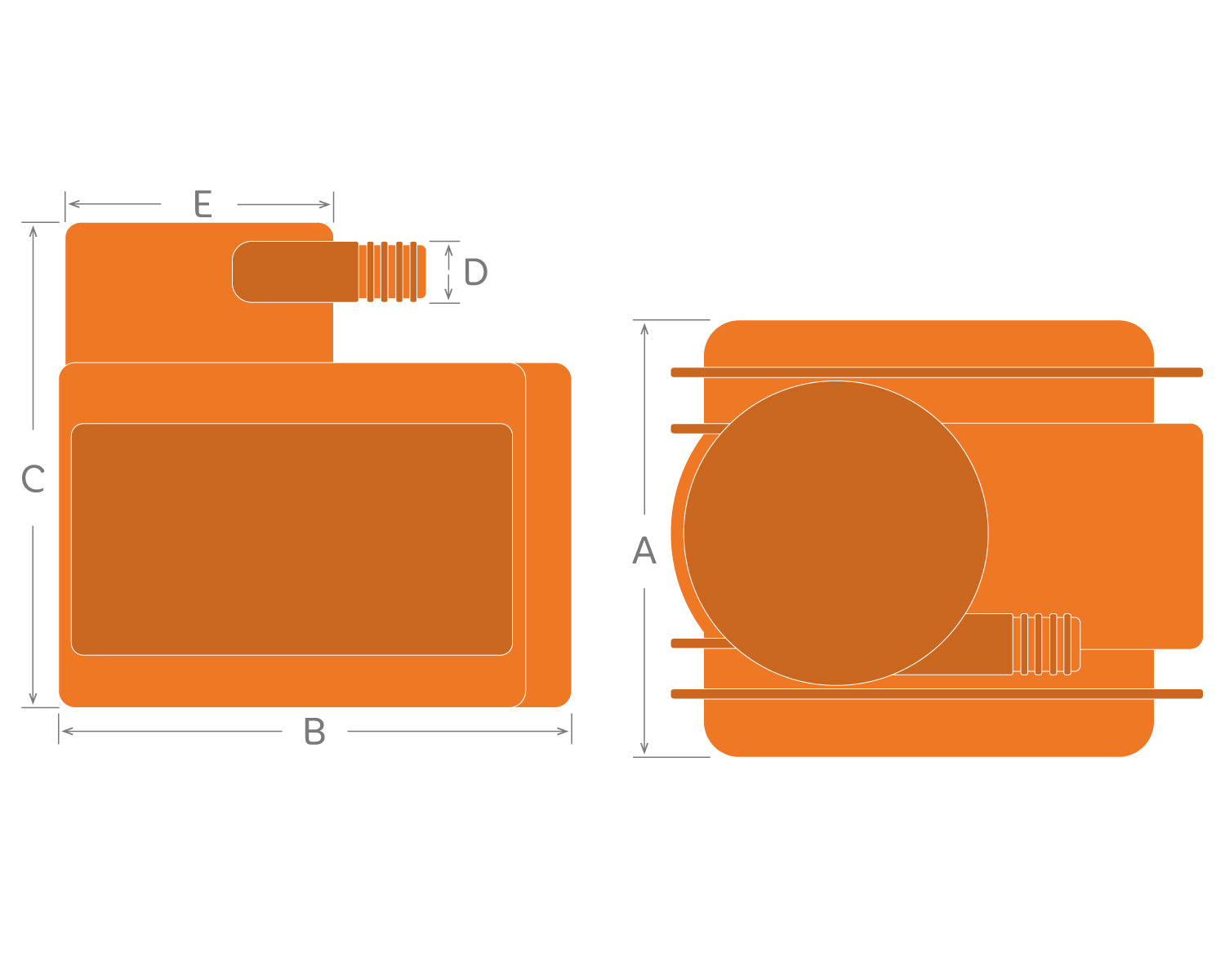

Measurements
| A: | 65mm |
| B: | 88mm |
| C: | 86mm |
| D: | 11.5mm |
| E: | 59mm |
