Features and Benefits
-.0001” Taper-Bore Runout Tolerance.
-Made of 8620 Alloy Steel with Case Hardness of 56-60 HRC and Core Hardness of 36-40 HRC.
-Tapers Ground to AT-3 Specifications or BETTER.
-Thru Coolant Feature.
Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310145186 |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Through Coolant | Yes |
| Minimum Collet Range (Decimal Inch) | 0.0780 |
| Maximum Collet Range (Decimal Inch) | 0.7870 |
| Actuator Type | Wrench |

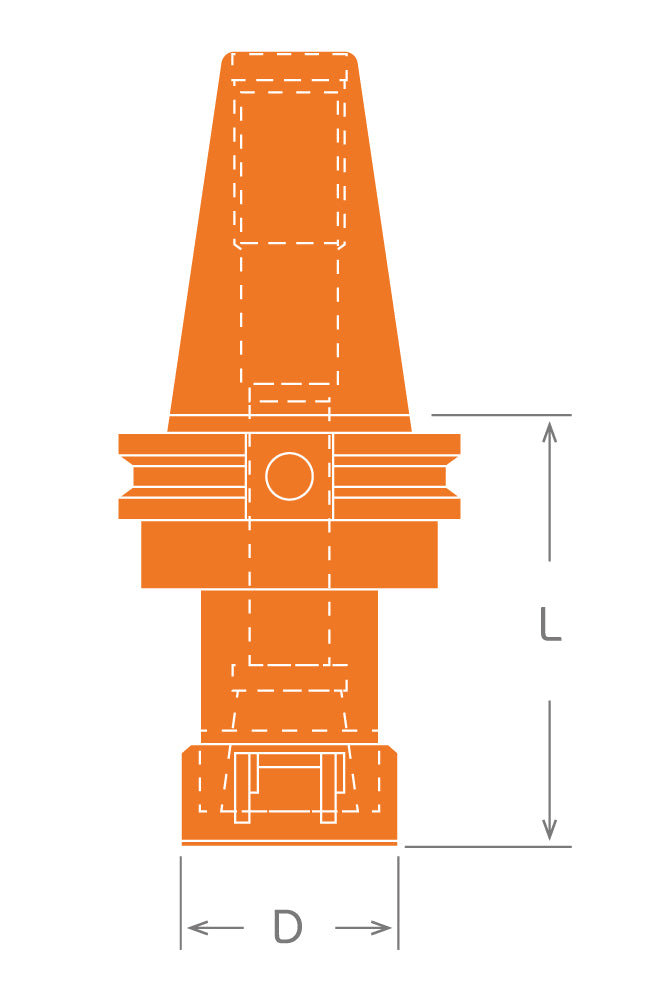

| D - Nose Diameter (Decimal Inch) | 1.9700 |
| L - Gage Length (Decimal Inch) | 2.5000 |
| Maximum RPM | 12000 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| TIR (Decimal Inch) | 0.0001 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9685 |
| Collet Nut Diameter (mm) | 50.00 |
