Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310158370 |
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Toolholder Style | S-MTHO-A |
| Series | On Edge Jet-Stream |

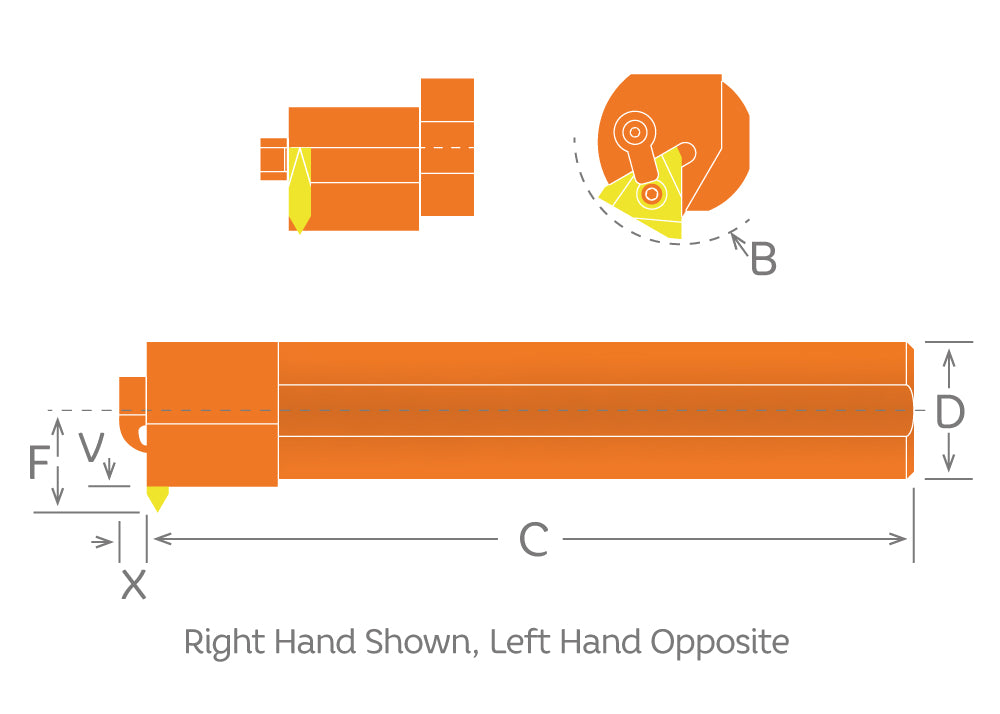

| B - Minimum Bore Diameter (Decimal Inch) | 3.7500 |
| C - Overall Length (Inch) | 16" |
| C - Overall Length (Decimal Inch) | 16.0000 |
| C - Overall Length (mm) | 406.40 |
| D - Shank Width/Diameter (mm) | 63.50 |
| D - Shank Width/Diameter (Decimal Inch) | 2.5000 |
| D - Shank Width/Diameter (Inch) | 2-1/2" |
| F - Center to Cutting Edge (Decimal Inch) | 1.6870 |
| V - Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| X (Decimal Inch) | 0.2500 |
| Insert Compatibility | TNMA-543 |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Insert Holding Method | Pin & Clamp |
| Lock Pin | NL-56 |
| Clamp | CL-6 |
| Clamp Screw | XNS-37 |
