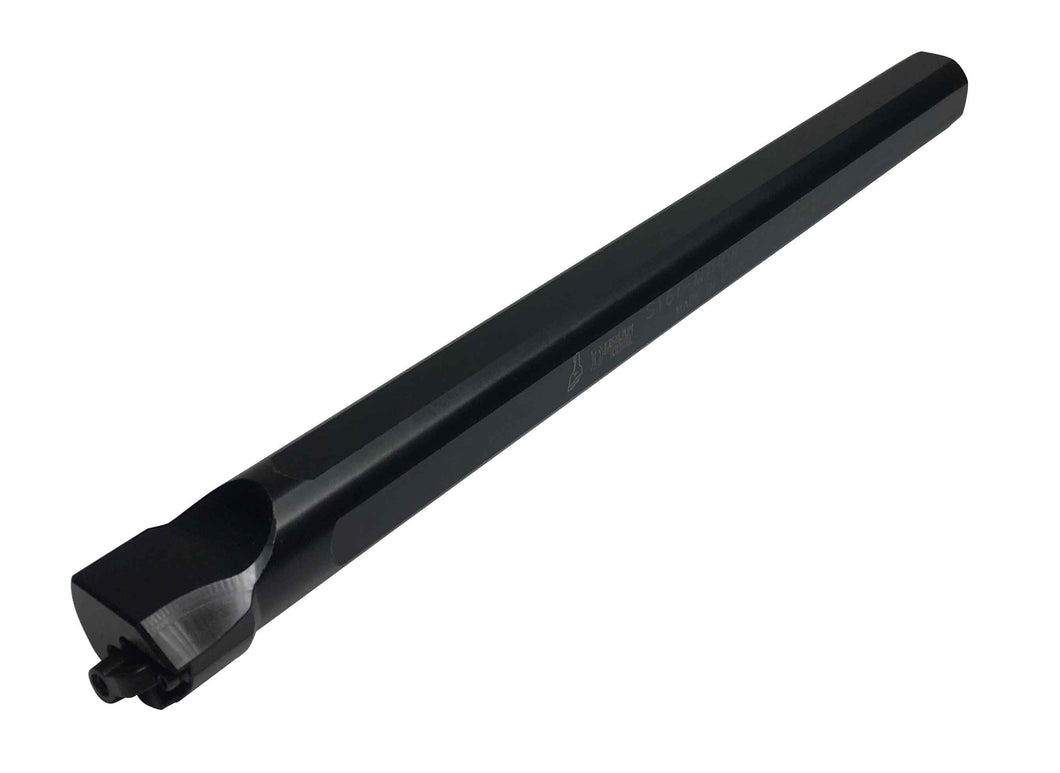

Specs
| Brand | Dorian Tool |
| Manufacturer's Part Number | 73310158346 |
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Toolholder Style | S-MTHO-A |
| Series | On Edge Jet-Stream |
| B - Minimum Bore Diameter (Decimal Inch) | 1.388 |
| C - Overall Length (Inch) | 12" |
| C - Overall Length (Decimal Inch) | 12.0000 |
| C - Overall Length (mm) | 304.80 |
| D - Shank Width/Diameter (mm) | 25.40 |
| D - Shank Width/Diameter (Decimal Inch) | 1.0000 |
| D - Shank Width/Diameter (Inch) | 1" |
| F - Center to Cutting Edge (Decimal Inch) | 0.6870 |
| V - Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Insert Compatibility | TNMA-322 |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Insert Holding Method | Pin & Clamp |
| Lock Pin | NL-33 |
| Clamp | CL-5 |
| Clamp Screw | XNS-36 |
